No. |
Name |
Function |
Material |
|
1 |
Top Fabric |
Protect the lining tensile member |
Polyester Cotton Canvas |
|
2 |
Buffer Rubber |
Suport adn protect the adhesive
force of the tensile member |
CR, EPDM |
|
3 |
Tensile Member |
Critical material to pass the dynamic force |
Polyester, Nylon |
|
4 |
Bottom Rubber |
Maintain the shape of the rubber and
improve its side compression performance |
CR, EPDM |
Feature:
Wide breadth but thin belt, excellent elastic and flexural property
.High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc.
.Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation
.Excellent heat-resistance, oil-proof, and wearing resistance
.Less slip while large transmission effect during the process of operation
.Less noise during the process of operation
|

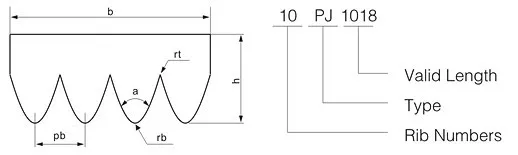

Size of Section |
|||||
|
Type |
Ribsection(mm) |
Angle of rib(o) |
Belt Thickness(mm) |
Rib Numbers |
Length range |
|
PH |
1.6 |
40 |
3 |
3-54 |
540-1270 |
|
PJ |
2.34 |
40 |
4 |
3-36 |
540-18880 |
|

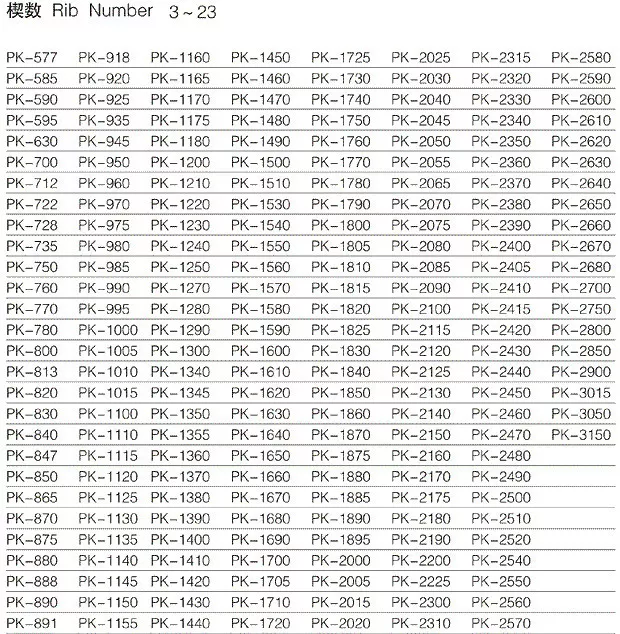

PK |
3.56 |
40 |
4-6 |
3-23 |
600-2400 |
|
PL |
4.7 |
40 |
10 |
3-16 |
900-3000 |
|
PM |
9.4 |
40 |
17 |
3-8 |
1500-3000 |
